flink1.12.x Table API 和 SQL：kafka读写数据，打包、上传到flink集群、yarn方式执行

作者：马育民 • • 阅读：10169

上接：flink1.12.x Table API 和 SQL：从kafka读取数据，执行查询，将结果写入到kafka中

修改pom.xml

修改依赖

flink自带的jar包，在依赖上要添加 <scope>provided</scope>，打包时，不要包含这些依赖

<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-java</artifactId>
    <version>${flink.version}</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-streaming-java_2.12</artifactId>
    <version>${flink.version}</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-clients_2.12</artifactId>
    <version>${flink.version}</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
    <version>1.7.30</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-log4j12</artifactId>
    <version>1.7.30</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
    <scope>provided</scope>
</dependency>
<!--  table api、sql需要的依赖  -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-table-planner-blink_2.12</artifactId>
    <version>${flink.version}</version>
    <scope>provided</scope>
</dependency>

注意

flink-runtime-web_2.12 要设置 <scope>provided</scope>

<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-runtime-web_2.12</artifactId>
    <version>${flink.version}</version>
    <scope>provided</scope>
</dependency>

注意

org.apache.bahir 不要用，因为是 scala 2.11 版本，与 flink 中的scala 2.12 版不匹配

<dependency>
    <groupId>org.apache.bahir</groupId>
    <artifactId>flink-connector-redis_2.11</artifactId>
    <version>1.0</version>
</dependency>

添加打包插件

<build>
    <plugins>
        <plugin>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.7.0</version>
            <configuration>
                <source>1.8</source>
                <target>1.8</target>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-shade-plugin</artifactId>
            <version>3.1.1</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>shade</goal>
                    </goals>
                    <configuration>
                        <transformers>
                            <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                <!--   修改主类-->
                                <mainClass></mainClass>
                            </transformer>
                            <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                <resource>reference.conf</resource>
                            </transformer>
                        </transformers>
                        <relocations>
                            <relocation>
                                <pattern>org.codehaus.plexus.util</pattern>
                                <shadedPattern>org.shaded.plexus.util</shadedPattern>
                                <excludes>
                                    <exclude>org.codehaus.plexus.util.xml.Xpp3Dom</exclude>
                                    <exclude>org.codehaus.plexus.util.xml.pull.*</exclude>
                                </excludes>
                            </relocation>
                        </relocations>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

完整依赖

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <flink.version>1.12.0</flink.version>
</properties>
<dependencies>
    <!--java-->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-java</artifactId>
        <version>${flink.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-streaming-java_2.12</artifactId>
        <version>${flink.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-clients_2.12</artifactId>
        <version>${flink.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-api</artifactId>
        <version>1.7.30</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-log4j12</artifactId>
        <version>1.7.30</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>1.2.17</version>
        <scope>provided</scope>
    </dependency>
    <!-- kafka Dependency -->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-kafka_2.12</artifactId>
        <version>${flink.version}</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-json</artifactId>
        <version>${flink.version}</version>
    </dependency>
    <!--  table api、sql需要的依赖  -->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-table-planner-blink_2.12</artifactId>
        <version>${flink.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-files</artifactId>
        <version>${flink.version}</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-runtime-web_2.12</artifactId>
        <version>${flink.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-jdbc_2.12</artifactId>
        <version>${flink.version}</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.47</version>
    </dependency>
    <!--  用的是 scala2.11，所以不能打包  -->
    <!--<dependency>-->
    <!--    <groupId>org.apache.bahir</groupId>-->
    <!--    <artifactId>flink-connector-redis_2.11</artifactId>-->
    <!--    <version>1.0</version>-->
    <!--</dependency>-->

    <dependency>
        <groupId>redis.clients</groupId>
        <artifactId>jedis</artifactId>
        <version>2.9.0</version>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.7.0</version>
            <configuration>
                <source>1.8</source>
                <target>1.8</target>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-shade-plugin</artifactId>
            <version>3.1.1</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>shade</goal>
                    </goals>
                    <configuration>
                        <transformers>
                            <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                <!--   修改主类-->
                                <mainClass></mainClass>
                            </transformer>
                            <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                <resource>reference.conf</resource>
                            </transformer>
                        </transformers>
                        <relocations>
                            <relocation>
                                <pattern>org.codehaus.plexus.util</pattern>
                                <shadedPattern>org.shaded.plexus.util</shadedPattern>
                                <excludes>
                                    <exclude>org.codehaus.plexus.util.xml.Xpp3Dom</exclude>
                                    <exclude>org.codehaus.plexus.util.xml.pull.*</exclude>
                                </excludes>
                            </relocation>
                        </relocations>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

打包

双击 maven 的 package，打包，结果有2个 jar 文件，一个文件比较大，这个文件就是打包好的文件

启动

启动 hadoop1、hadoop2、hadoop3

启动zookeeper

登录 hadoop1，执行下面命令

/program/bin/zk.sh start

启动kafka

登录 hadoop1，执行下面命令

/program/bin/kafka.sh start

启动hadoop

要将 flink jar提交到yarn运行，所以要启动 yarn，这里都启动了

/program/bin/hadoop.sh start

准备 kafka 主题

创建主题 user_order_input

flink 从该主题读取数据：

/program/kafka_2.12-2.4.1/bin/kafka-topics.sh --create --zookeeper hadoop1:2181 --replication-factor 2 --partitions 3 --topic user-order-input

注意： zookeeper 的主题名称不要有 . 或 _，详见 链接

创建主题 user-order-output

flink 将结果 发送到该主题：

/program/kafka_2.12-2.4.1/bin/kafka-topics.sh --create --zookeeper hadoop1:2181 --replication-factor 2 --partitions 3 --topic user-order-output

启动 user-order-output 主题消费者

启动另一个窗口执行下面命令：

/program/kafka_2.12-2.4.1/bin/kafka-console-consumer.sh --bootstrap-server hadoop1:9092 --topic user-order-output

用于查看数据

测试

上传 程序 jar 包

将体积大的 jar 包上传到 /program/ 目录

per-job cluster模式启动

/program/flink-1.12.5/bin/flink run -m yarn-cluster -ytm 1000 -yjm 1000 -ys 1  -c  sql.SQLKafka    /program/flink-1.0-SNAPSHOT.jar

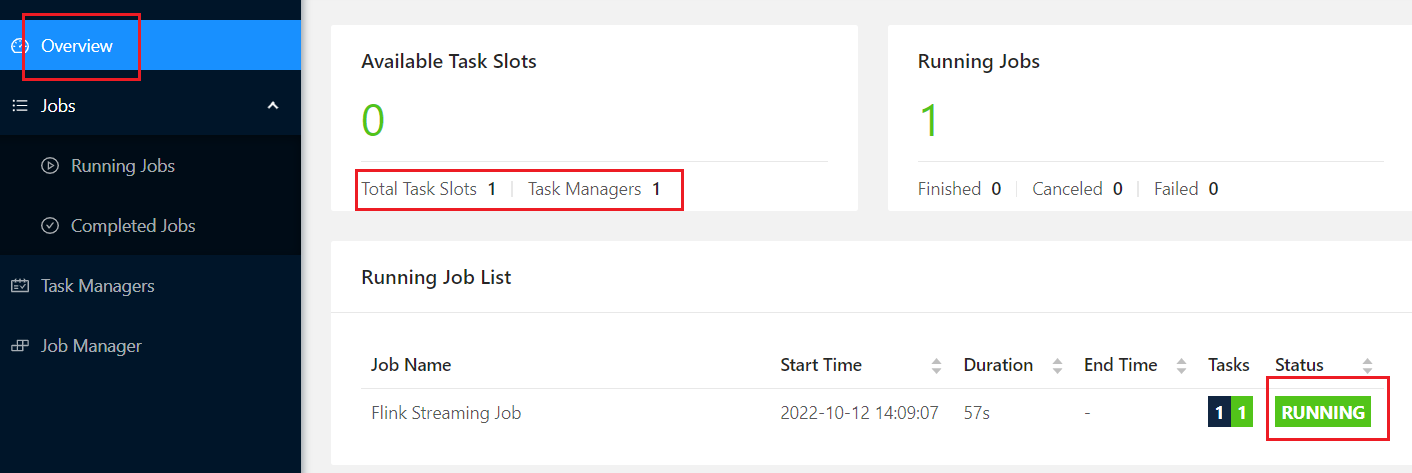

看到下图表示启动成功：

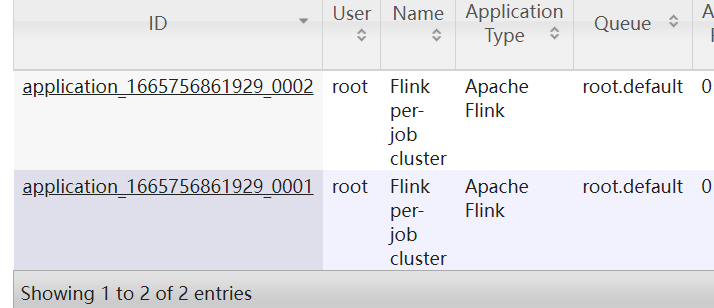

注意：启动 2个 yarn任务

启动生产者 user-order-input，发送数据

启动另一个窗口执行下面命令：

/program/kafka_2.12-2.4.1/bin/kafka-console-producer.sh --broker-list hadoop1:9092 --topic user-order-input

在上面的环境中，输入下面内容，发送数据（可一条一条发，也可多条发）：

{"name":"java从入门到精通","price":50,"username":"李雷"}
{"name":"spark从入门到精通","price":80,"username":"李雷"}
{"name":"hadoop从入门到精通","price":90,"username":"韩梅梅"}
{"name":"flink从入门到精通","price":70,"username":"韩梅梅"}
{"name":"mysql从入门到精通","price":100,"username":"李雷"}
{"name":"hive从入门到精通","price":100,"username":"lucy"}
{"name":"html从入门到精通","price":120,"username":"lucy"}

观察结果

user-order-output消费者窗口

输出下面内容

{"name":"hive从入门到精通","price":100.0}
