上接：flink1.12.x sink-发送数据到kafka（自定义序列化器）
说明
有时需要根据 数据 进行分区，需要以下两个步骤
步骤一
继承 FlinkKafkaPartitioner 类，并重写 partition() 方法 ，该类源码如下：
public abstract class FlinkKafkaPartitioner<T> implements Serializable {
private static final long serialVersionUID = -9086719227828020494L;
/**
* 分区器初始化方法，每个并行度都会调用一次该方法（仅在初始化时调用一次）
*
* @param parallelInstanceId 当前并行任务的索引
* @param parallelInstances 并行度的总数
*/
public void open(int parallelInstanceId, int parallelInstances) {
// overwrite this method if needed.
}
/**
* 自定义分区规则
*
* @param record flink上游算子传入的数据
* @param key 序列化的key
* @param value 序列化的value
* @param targetTopic 主题
* @param partitions 该主题的分区索引
*
* @return 返回分区索引，从0开始，负数会报错
*/
public abstract int partition(T record, byte[] key, byte[] value, String targetTopic, int[] partitions);
}
步骤二
创建 Producer 时，指定该分区器
Properties properties = new Properties();
properties.setProperty(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG,"hadoop1:9092,hadoop2:9092,hadoop3:9092");
FlinkKafkaProducer myProducer = new FlinkKafkaProducer(
"userlog2", // 主题 topic,
new JsonSerializationSchema(),
properties,
Optional.of(new FlinkKafkaPartitionerImpl())); // 容错
例子
package sink;
import org.apache.flink.api.common.functions.RichFlatMapFunction;
import org.apache.flink.api.common.serialization.SerializationSchema;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer;
import org.apache.flink.streaming.connectors.kafka.partitioner.FlinkKafkaPartitioner;
import org.apache.flink.util.Collector;
import org.apache.kafka.clients.producer.ProducerConfig;
import java.util.Optional;
import java.util.Properties;
/**
* 运行时需要指定参数：--config d:/flink.properties
*/
public class Stdkafka {
public static void main(String[] args) throws Exception {
final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setParallelism(3);
DataStreamSource<String> dss = env.fromElements(
"李雷 韩梅梅",
"韩梅梅 lili",
"lucy 李雷",
"lili lucy");
// 处理
SingleOutputStreamOperator<Tuple2<String, Integer>> soso = dss
.flatMap(new FlatMapFunImpl())
.keyBy(value -> value.f0)
.sum(1);
soso.print("res:");
// 发送到 kafka
soso.addSink(buildKafkaProducer());
env.execute("myjob");
}
private static FlinkKafkaProducer buildKafkaProducer(){
Properties properties = new Properties();
properties.setProperty(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG,"hadoop1:9092,hadoop2:9092,hadoop3:9092");
FlinkKafkaProducer myProducer = new FlinkKafkaProducer(
"userlog2", // 主题 topic,
new JsonSerializationSchema(),
properties,
Optional.of(new FlinkKafkaPartitionerImpl())); // 容错
return myProducer;
}
/**
* kafka分区器
*/
static class FlinkKafkaPartitionerImpl extends FlinkKafkaPartitioner<Tuple2<String,Integer>> {
@Override
public void open(int parallelInstanceId, int parallelInstances) {
System.out.println("open-----------");
}
/**
*
* @param data the record value 数据
* @param bytes serialized key of the record
* @param bytes1 serialized value of the record
* @param s target topic for the record 主题
* @param ints found partitions for the target topic 该主题的分区
*
* @return
*/
@Override
public int partition(Tuple2<String,Integer> data, byte[] bytes, byte[] bytes1, String s, int[] ints) {
// 分区总数
int partitionNum = ints.length;
// 根据 单词 的hashCode计算分区索引，注意：hashCode可能是负数，由于分区索引不能是负数，所以取绝对值
int partitionIndex = Math.abs( data.f0.hashCode()) % partitionNum;
return partitionIndex;
}
}
static class FlatMapFunImpl extends RichFlatMapFunction<String, Tuple2<String, Integer>> {
@Override
public void flatMap(String value, Collector<Tuple2<String, Integer>> out) throws Exception {
String[] arr = value.split(" ");
for(String item : arr){
Tuple2<String, Integer> temp = Tuple2.of(item, 1);
out.collect(temp);
}
}
}
/**
* 自定义序列化器
*/
static class JsonSerializationSchema implements SerializationSchema<Tuple2<String, Integer>> {
@Override
public byte[] serialize(Tuple2<String, Integer> element) {
String data = element.f0+","+element.f1;
return data.getBytes();
}
}
}

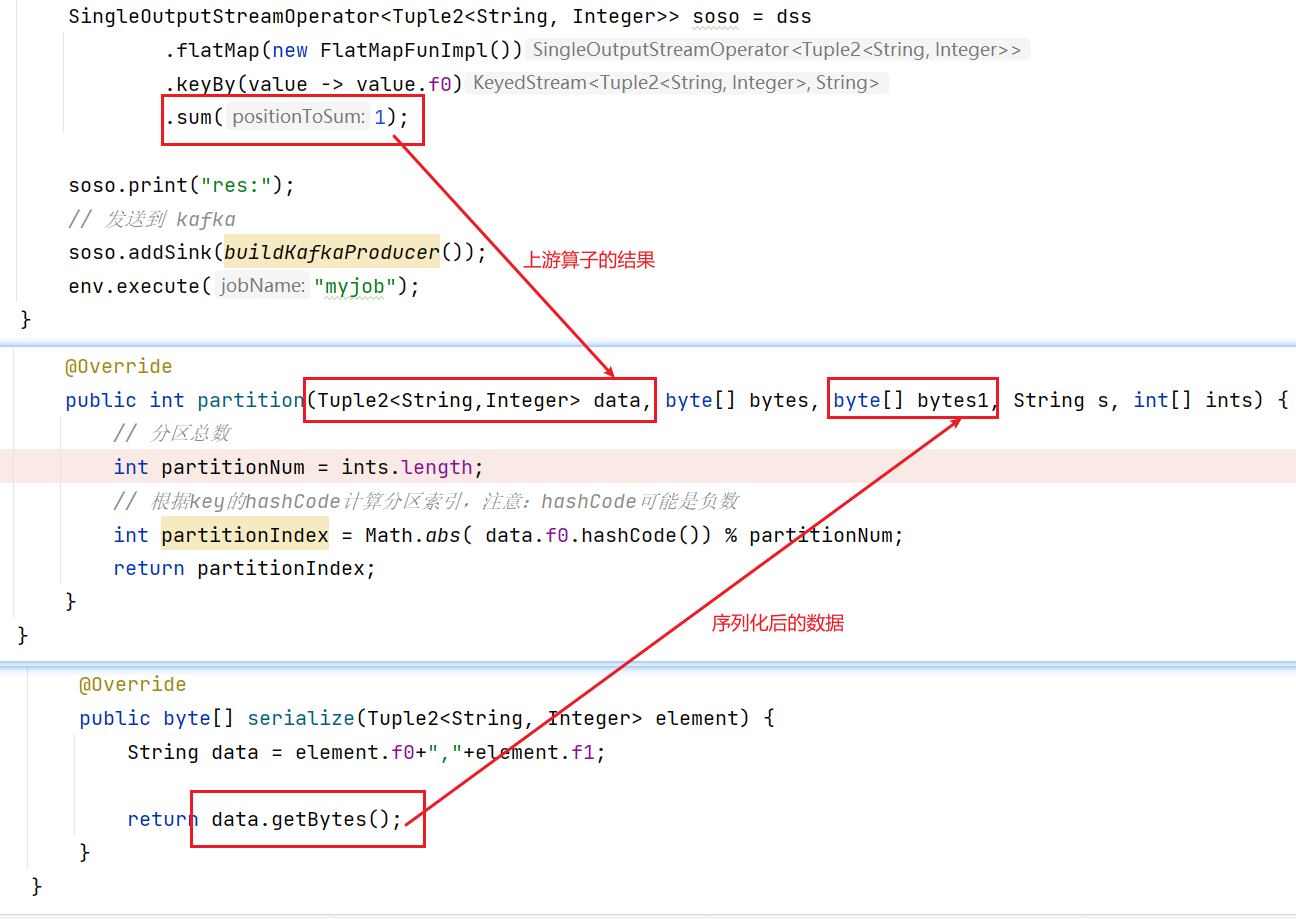

解释
执行结果
分区 偏移量 数据 时间戳
0 66 lili,2 2022-12-17 16:34:54.054
2 16 李雷,1 2022-12-17 16:34:54.054
2 17 李雷,2 2022-12-17 16:34:54.054
1 28 lucy,1 2022-12-17 16:34:50.050
1 29 lucy,2 2022-12-17 16:34:54.054
